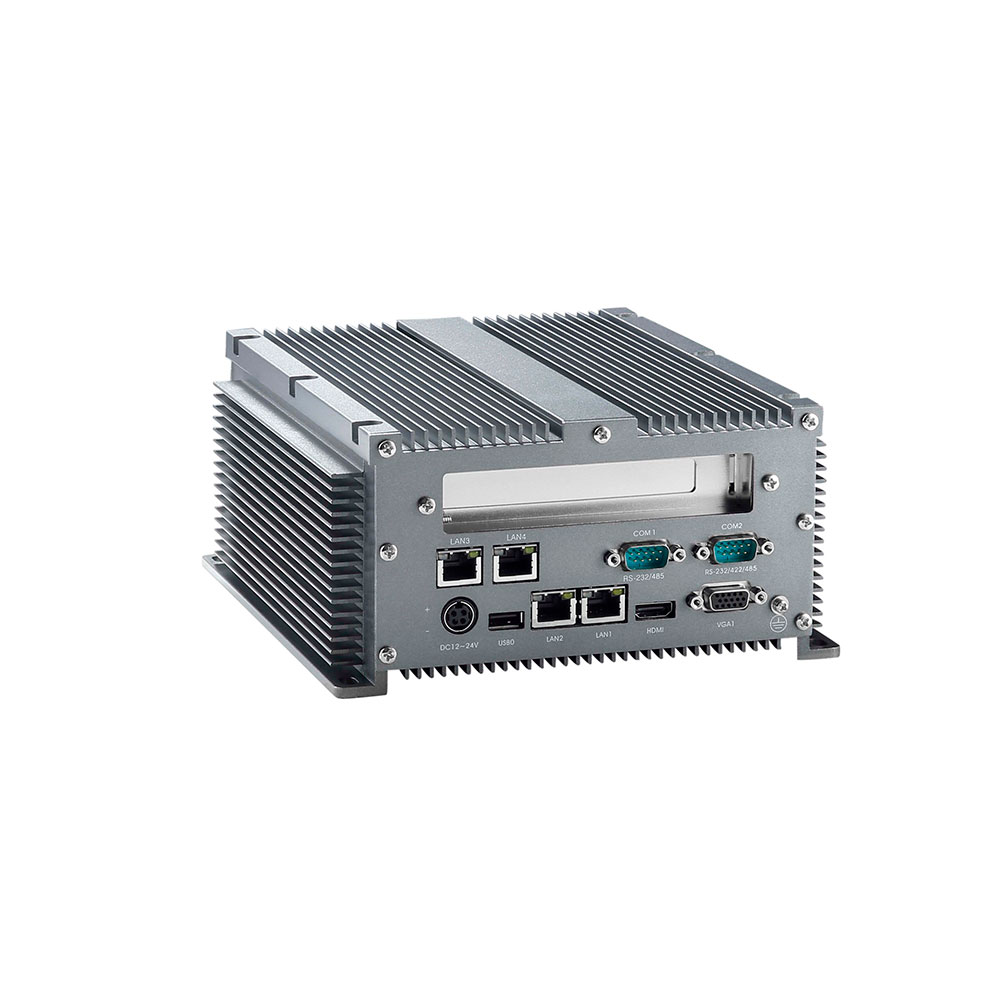

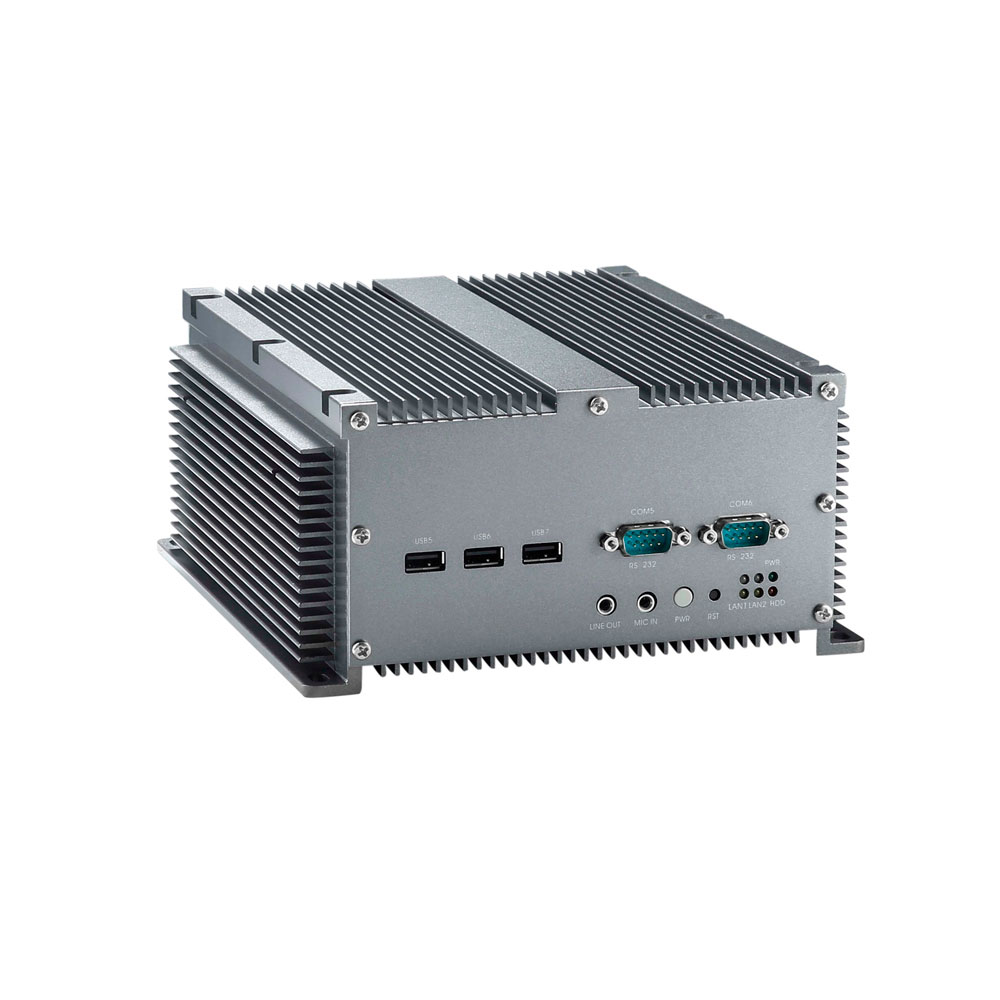

CPU：板載 Intel Atom D525 GPU
芯片組：Intel 82801+ICH8-M
內存：板載2.0GB
I/O端口：4*LAN,1*HDMI,1*VGA,1*音頻,4*USB
串口：4個串口（2*RS-232,1*RS-232/485,2*RS-232/422/485）
看門狗：256級,可編程時間到中斷、時間到系統復位
存儲：1*2.5"SATA盤位,1*mSATA,1*CF槽位(可選購）
擴展槽位:1*PCI或PCIE X1卡槽
輸入電源:DC_12~24V
產品尺寸:195*205 *96 mm(W*D*H)
Category
Attribute
Value
System Hardware
Processor
Intel Atom® Processor D525 (1M Cache, 1.80 Ghz)
BIOS
8Mb AMI SPI
Chipset
Intel 82801HBM(ICH8-M)
Memory
2GB (up to 4GB Max. Capacity ) DDR3 installed
Storage
One Drive Bay for SATA 2.5" HDD ,1*CF (Optional)
Watchdog Timer
Programmable 256 levels timer interval
Audio
High Definition Audio (HD)
Ethernet
4*10/100/1000 Mbps Ethernet Controller
Graphics Engine
Intel® HD Graphics
External I/O Interface
LAN
4 (RJ-45)
Audio
1*LINE OUT & MIC-IN
USB Port
4*USB
Display
1*HDMI, 1*VGA, 1*SIM (Optional)
Serial Port
2*RS-232, 1*RS-232/485, 1*RS-232/422/485
Internal I/O Interface
VGA
1*VGA (Optional)
PS/2
1*PS/2 KB/MS
LVDS
1*18/24-bit LVDS (Optional)
LPT
1*LPT (Optional)
SIM
1*SIM (Optional)
DIO
1*16-bit DIO (Optional)
General
Power Input Votage
DC_IN 12V~24V
Power Adapter
AC to DC, DC12V 60W (Optional)
Expansion slot
1*PCI slot (1*PCIEx1 slot Optional)
Dimensions (W x Dx H)
195 x 205 x 96 mm
Colour
Iron gray
Mounting
Stand, Wall
Enclosure
Aluminum Housing
Thermal Solution
Fanless
Environment
Operating Temperature
-10 ~ 60°C
Storage Temperature
-40 ~ 80°C
Relative Humidity
5~ 95% (non-condensing)
